MEDICRAFT

JUMPING BOX

FOR

STUDYING LEARNED AVOIDANCE - ESCAPE RESPONSE

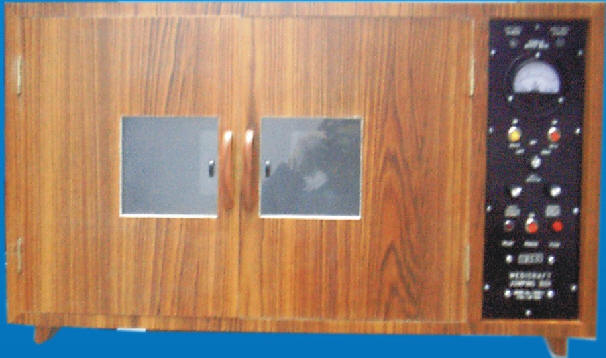

The MEDICRAFT JUMPING BOX incorporates a widely used general method of inducing learned behavioral habits in animal. A series of two successive stimulii i.e., a Warning Stimulus (Audible) followed by a Noxious Stimulus are presented to the animal and it learns to avoid the Punishment by making an appropriate response when presented with the warning stimulus, the noxious stimulus inducing escape response in naive subjects.

The MEDICRAFT JUMPING BOX consists of two compartments divided by a hurdle and enclosed in a sound-proof enclosure. The floor of the jumping box is a grill. Each compartment can be charged electrically from 0 to 50 volts, 50 cycles per second, as required. The intensity of the Noxious Stimulus is variable. An electronic variable intensity source serves as the warning stimulus.

The interior is illuminated and warning lights indicate which of its grills is electrically charged. Front doors also consists of perspex windows in them permit easy handling of the animals. The animals is viewed through these perspex windows.

Made of high quality sunmica laminated teak ply .



SPECIFICATION

bullet

Operating Voltage : 220V, 10%, 50 Hz AC. only.

bullet

 The Intensity of noxious stimulus is variable from 0 to 50V. AC, monitored by a voltmeter.

bullet

 The wire-grill can be charged one by one which is indicated by light on the panel.

Ordering information:



0506

MEDICRAFT JUMPING BOX

Specification may change without notice for improvement.
