The MEDICRAFT
CONTINUOUS AVOIDANCE RESPONSE (C.A.R.) APPARATUS is designed for
the study of operant behaviour of small animals. Simple in Operation, it
provides a convenient test procedure in which an animal under test has to
anticipate the time duration to avoid the punishment by pressing a lever.

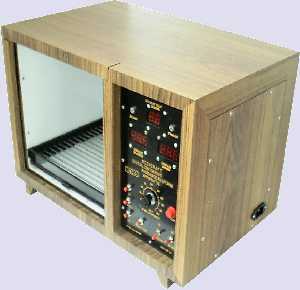

MEDICRAFT C. A. R.
APPARATUS consists of an
illuminated animal chamber with stainless wire grid floor, a lever (or
avoidance key) and the vertically sliding front door. The Control Panel
consists of the variable shock controls, the LED or LCD register the number
of shock stimulus avoided and stimulus delivered, through electronic
circuitry.
MEDICRAFT C. A. R.
APPARATUS is a micro controller based equipment.
SPECIFICATIONS
 |
Operating Voltage :
220 Volt 50 Hz A.C. Mains Supply. |
|
Illuminated Animal
Chamber. |
|
Avoidance Key placed
at a convenient height, which requires interrupted pressing by the animal
to avoid punitive shock. |
|
Shock Stimulus
continuously variable from 0 to 200 volts. |
|
Delay Time Interval
variable from 1 to 99 seconds controlled through front panel. |
|
LCD or LED display to
monitor Delay Time, number of Shocks delivered and shock avoided by
animal. |
|
The Stainless Steel
Wire - Grid Floor. |
|
A removable sliding
tray beneath the floor to collect the feces, etc., of the animal. |
|
Sunmica covered
wooden Cabinet, dimensions 50 x 30 x 30 cm Approx. |
