MEDICRAFT
DIGITAL DISPLAY
MULTIPLE
CHOICE
APPARATUS |
  |
|

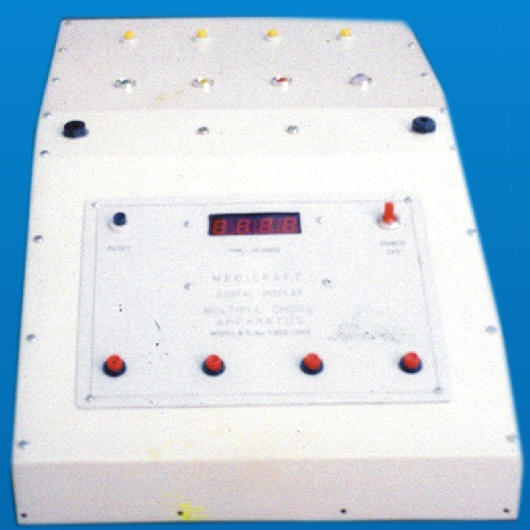

The MEDICRAFT MULTIPLE
CHOICE APPARATUS has been designed to test the VISUAL PERCEPTION
and MOTOR PERFORMANCE in humans. This equipment is particularly
designed used as a test for the PERCEPTION OF VISUAL DETAILS by
measuring the response of an individual in recognising the correct stimulus.
In this test the subject, under test, has to respond to the applied stimulus
by pressing the correct switch associated with the particular stimulus
generated by the operator. The time taken by the subject to respond to the
correct stimulus is recorded as the response time on a five digit digital
chronoscope.
The Multiple choice apparatus
is designed to provide the subject four different types of stimulus -- four
different colour glowing indicator. The time passed between the start of the
experiment to the point when the subject responds to by pressing the correct
button is recorded on the chronoscope, all incorrect responses are ignored.
SPECIFICATIONS
 |
Operation from 220 V, ±
10%, single Phase, 50Hz, A.C. |
|
Option for External D.C.
Source on request.
|
|
Micro-processor based
circuitry.
|
|
Four different coloured
visual stimuli, 10mm Light Emitting Diodes (L.E.D.) provided at subject’s
side. |
|
Individual
controls for each stimuli.
|
|
Four Digit Electronic
Display of time, maximum counting 99.99 second with resolution of 0.01
second. |
|
Power ON-OFF Switch &
Indicators. |
|
Reset to Zero
Switch.
|
|
Removable Screen partition
|
|
|
Ordering information:
| 653MP |
Medicraft Digital Display Multiple Choice
Apparatus. |
Specification may change without notice for improvement.
|
|
