MEDICRAFT

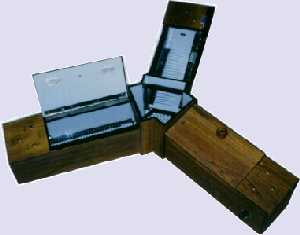

SEMI - AUTOMATIC

Y-MAZE

The MEDICRAFT SEMI - AUTOMATIC Y-MAZE has been developed by us for the study of shock-motivated Brightness Discrimination Response in small animals, i.e., rats.

It consists of :-

bullet

Three removable sunmica lined chambers arranged in y - shape connected to a central chamber.

bullet

Each arm has a working dimension of approx. 30 x 15 x 15 cms., with chamber light, cue light, grill charge indicator, rat presence indicator, removable central dividing door and hinged top.

bullet

The central portion containing wire - grill.

bullet

Separate stimulus and control unit with approx. 5 meter long leads.

bullet

The control unit has a replica of the Y-Maze with facility of indication of the conditions of each chamber.

bullet

A pre-programmed rotary switch, which controls the experimental procedure, including cue light, visual stimulus and shock stimulus, facilitates conduct of an experiment without disturbing the animal.

bullet

 Operates off 220 Volts A.C. only.

Ordering Information



510 S

Medicraft Semi - Automatic Y-Maze

510 C

Medicraft  Automatic Y-Maze

Specification may change without notice for improvement.
