MEDICRAFT

SHOCK GENERATORS

The MEDICRAFT SHOCK GENERATORS provide a means of presenting and controlling electrical shock stimuli. The stimulus is variable in intensity and in the sophisticated model is controlled by a solid state timer.

The MEDICRAFT SHOCK GENERATOR TYPE : 515-V is a simple and straight forward instrument providing 50 Hz A.C. stimulus variable from 0 to 150 volts and monitored by a meter.

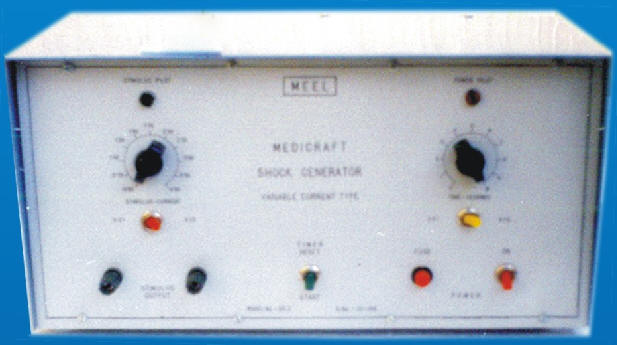

The MEDICRAFT SHOCK GENERATOR TYPE : 515-I is a sophisticated instrument to deliver 50 Hz A.C. stimulus calibrated, as per international practice, in terms of short circuit current from 0.05 to 4 mA in about 20 steps at a nominal source voltage of 350. A built-in solid state timer controls the stimulus duration from 0.1 to 10 seconds in 20 steps.

 In both the models stimuli outputs are isolated from electric mains to provide safety. The instruments operate off 220 volts A.C. and are housed in attractive steel cabinet with easy-to-set controls.

 A SHOCK CHAMBER is also available separately.



ORDERING INFORMATION



515 -V

Medicraft Shock Generator Variable Voltage Type 0 - 150 Volts

515 - I

Medicraft Shock Generator Variable Current Type 0.05 mA to 4 mA



Specification may change without notice for improvement.
